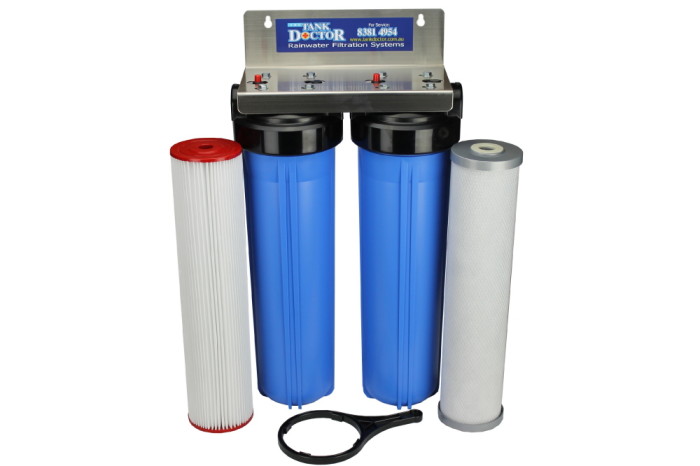

Whole House Twin Cartridge Rainwater Filter System
Whole house rainwater filters protect the home from dirt and particles that may be suspended in the water supply.
The system consists of twin filters which are installed on the discharge side of the pressure pump.
STAGE 1: The Rainwater passes through a 20”x 4.5” Matrix polyester pleated cartridge which captures suspended solids in the water such as dirt, rust, algae etc. The cartridge is rated to 10 Microns. Made in New Zealand.
STAGE 2: The rainwater then passes through a 20”x 4.5” KX Carbon block cartridge. Carbon filtering is a method of filtering that removes contaminants and impurities, utilizing chemical adsorption. The cartridge assists in the removal of finer silt particles along with colour, taste, odour, chlorine and some germs from the rainwater supply. The cartridge is rated to 5 Microns. Made in USA.
Kit consists of:
2 x 20″ x 4.5″ big blue filter housings 1″ inlet/outlet
1 x Stainless steel mounting bracket with screws
1 x 10 Micron Matrix polyester pleated filter cartridge
1 x 5 Micron KX Carbon block filter cartridge
1 x Opening handle
1 x 25mm poly joining nipple with thread tape
- Flow Rate: 45Lpm
- Max Pressure 900kPa
- In / Out Connections: 1″ BSP (25mm)
Dimensions: (with bracket)
- 700mm high x 380mm wide x 190mm deep
Whole House Rainwater Filtration System with Aqua-Pro s/s 12Gpm U.V. system installed.
All our filtration systems are pressure tested and approved to Australian / New Zealand Standards
AS/NZS 3497: 1998
Drinking water treatment units – plumbing requirements
AS 3737: 2001
Method of pressure cycling resistance of pipes and fittings
>Free shipping Australia wide!
