CA2 Tannin Reduction System & Whole House Rainwater Filter




$2,795.00

ratings
-
+

Product Info

Product Description

CA2 TANNIN REDUCTION SYSTEM & WHOLE HOUSE RAINWATER FILTER

The CA2 Tannin Reduction Filtration System is specially designed for water clarification (colour removal), bacterial capture/retention, chlorine removal and odour/taste removal.



The CA2Tannin Reduction Filter System is installed following a Twin or Triple cartridge Whole House Water Filtration System which first removes sediment particles. The CA2 is an automatic filtration system which contains silver carbon media to absorb tannin from the rainwater supply. Silver is used to inhibit bacteria growth in the media. The system automatically back-washes itself on a weekly basis to remove impurities and ensure the carbon media is performing at it’s best to reduce tannin from the rainwater supply.

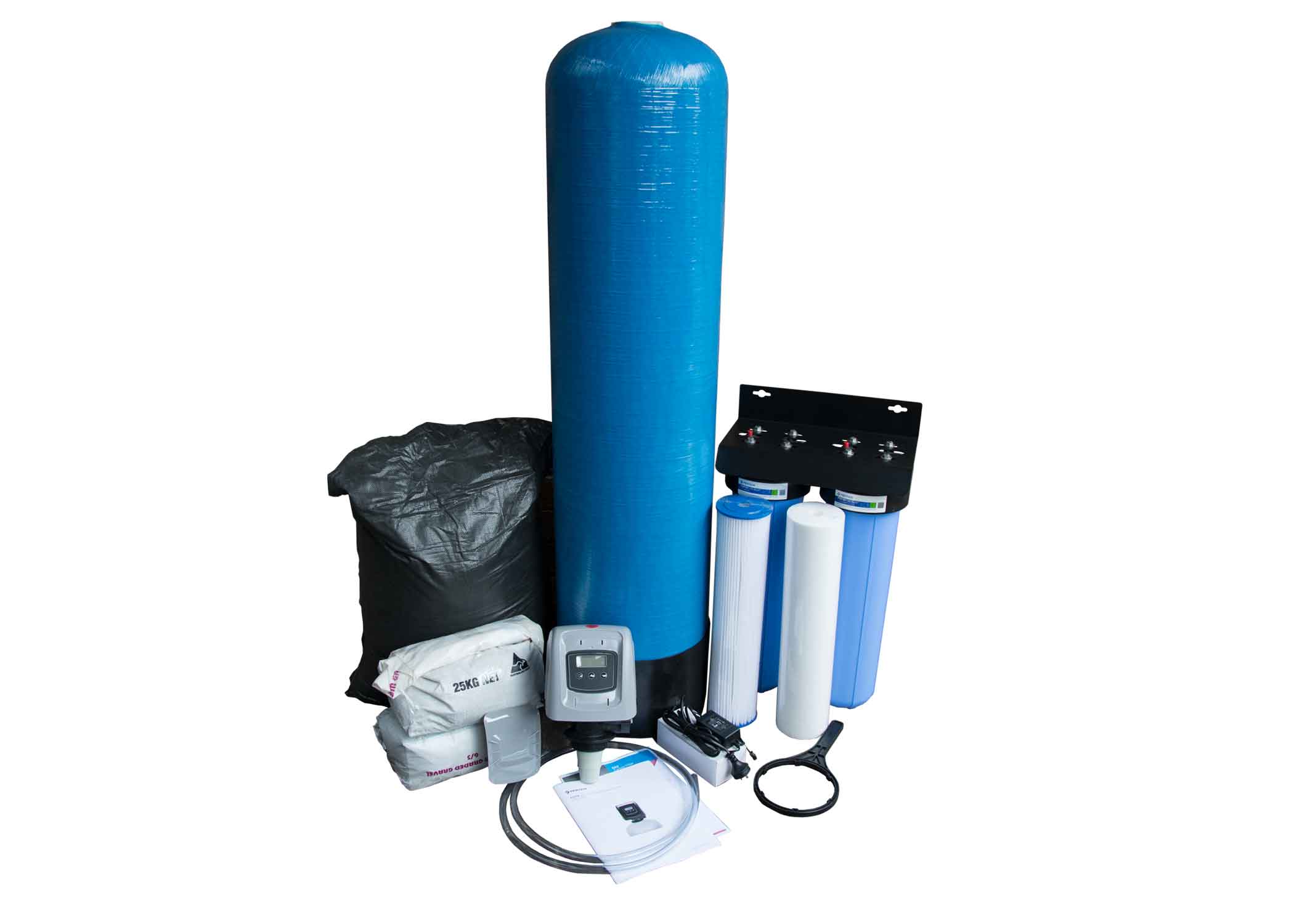

KIT INCLUDES

  • Pentair Pressure Vessel
  • Fleck Auto Outdoor Control Valve
  • Power Supply
  • 10Kg Filter Gravel
  • 28Kg Granular Silver Carbon
  • Drain Tube
  • User Manual
  • Pentair Twin 20″ x 4.5″ Whole House Rainwater Filtration System Made in USA. Watermark Approved.
  • 10 micron Polyester Pleated Filter cartridge
  • 5 Micron Polyester Spun Fine Filter Cartridge
  • Opening Handle
  • 5-year warranty on the American made Pentair electronic Fleck control valve
  • 2-year warranty on the Vessel and components

FREE SYSTEM SHIPPING AUSTRALIA WIDE

Installation

Installation of the CA2 Carbon Tannin Reduction system is very simple. It can be installed at the house or near the rainwater filtration system. It must be installed following a free-standing or wall-mounted rainwater filtration system. The twin filter system removes sediment particles prior to the carbon filtration process through pleated and poly spun filter cartridges.



Operating Specifications:

  • Max Pressure 100Psi
  • Minimum Pressure 20 Psi
  • Temperature 1-49 degrees
  • Max Vacuum 5″ Hg (127mmHg)
  • Water inlet 25mm (1″)
  • Water outlet 20mm (3/4″)
  • Peak flow rate 40 Lpm
  • Voltage 240 Volts with 12 Volts step down

Additional information

Specifications

Operating Specifications:

Max Pressure 100Psi
Minimum Pressure 20 Psi
Temperature 1-49 degrees
Max Vacuum 5″ Hg (127mmHg)
Water inlet / outlet 20mm (3/4″)
Peak flow rate 40 Lpm
Voltage 240 Volts with 12 Volts step down
