Name: Twin Cartridge Rainwater Filtration System + UV
SKU: 3549
Price: 1995.00 AUD
Availability: InStock

Product Description

FILTATANK FT-2000UV

Twin 20″ x 4.5″ Whole House Rainwater Filter Systems remove unwanted sediment through a 10- micron polyester pleated cartridge, followed by a 5-micron silver impregnated carbon cartridge to remove colour, taste and odour. Silver is used to inhibit the growth of bacteria on the cartridge. Pressure gauges indicate water inlet and outlet pressure. The 3mm stainless steel mounting bracket supports a high quality Viqua Ultraviolet Sterilisation system designed to kill 99.9% of bacteria in the water supply.

All systems come fully assembled ready to go.

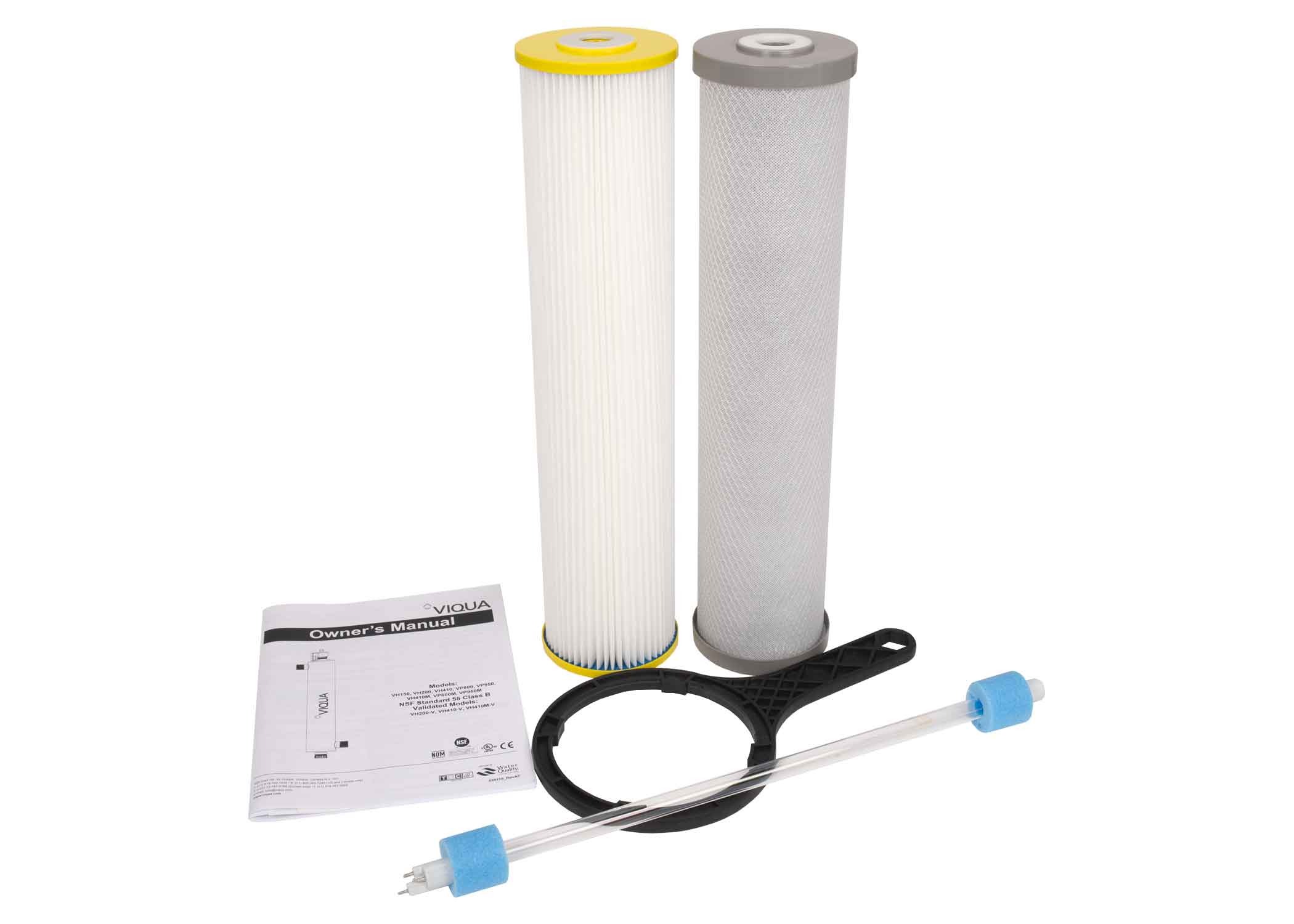

WHAT'S INCLUDED

1 x 10 Micron Polyester Pleated cartridge for dirt and sediment removal

1 x 5 Micron Silver Carbon Block for colour, taste and odour removal

1 x Filter housing opening handle

1 x 60w genuine Viqua UV lamp

2 x User manuals

FREE SYSTEM SHIPPING AUSTRALIA WIDE

Twin-Filter-System-Cartridge-Package-low

WHAT MAKES FILTATANK FILTRATION SYSTEMS THE BEST CHOICE?

Filtatank rainwater filtration systems are made from the highest quality components available on the market to provide a superior quality product that is very simple to maintain and operate.

Designed to remove sediment and harmful bacteria such as E-Coli, giardia, Salmonella, Campylobacter and cryptosporidium which can easily be transferred through animal faecal matter from birds, possums and vermin that may come into contact with the rainwater supply.

The young, the elderly, and those with compromised immune systems are among the most susceptible to infection because their intestines are less resilient to the effects of bacteria. UV offers a safe, chemical-free solution to keep these vulnerable individuals safe from harmful microorganisms that may be present in the rainwater supply.

Superior System Quality, Warranty & Performance

Each Filtatank rainwater filtration system is hand-built and assembled in Australia by the team at The Tank Doctor. With over 15-years experience selling and installing rainwater filtration systems, you are assured of an extremely high quality product with excellent after sales support.

Components are individually laser cut, folded, welded and assembled by Australians using Australian materials. We use only the very best quality components in each filtration system with Viqua UV systems sourced from Canada and patented Italian made filter housings.

Proven to work and last the test of time Viqua UV chambers carry a huge 10-year warranty from a company that has been in business for over 35-years.

Why would you trust the health of your family with anything less!

Filtatank-Twin-cartridge-rainwater-filtration-system-with-UV-s-s-cutout-low

Designed and built in Australia from high quality stainless steel
Italian made patented Atlas filter housings rated to 120psi.
Dual stainless steel pressure gauges indicate accurate water inlet and outlet pressure across the filtration system
Fully plumbed with high quality 316 stainless steel components
Kills 99.9% of bacteria and viruses through exposure to UV light which eliminates their ability to reproduce
Huge 10-year UV chamber warranty

Patented Design

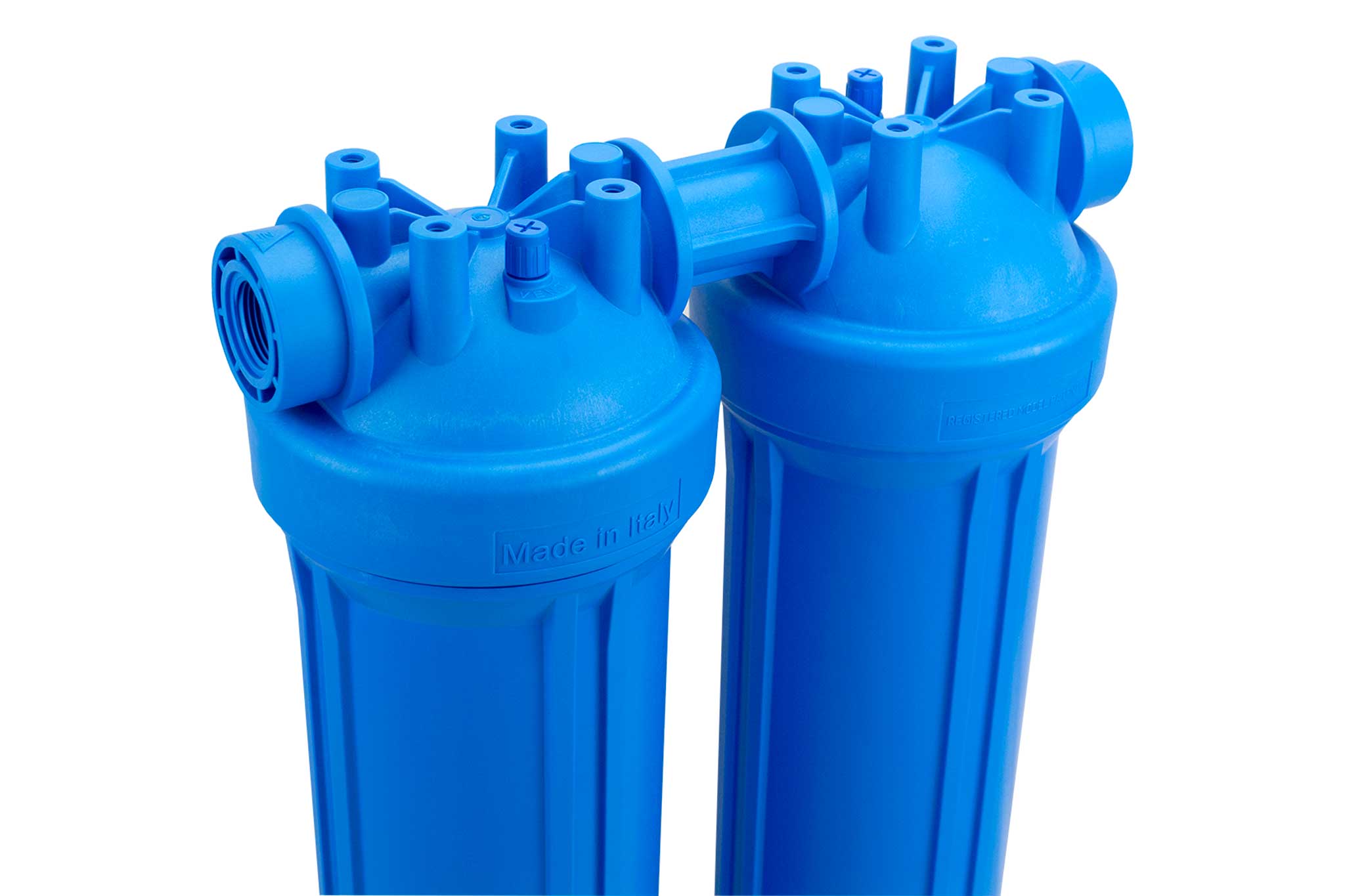

Filtatank systems use the very best quality Italian made filter housings. Patented one-piece housing tops ensure leak-free connection between housings with extreme rigidity and structural strength across the whole filtration system.

With a pressure rating of 120psi and 3-year warranty, the filter housings surpass all other systems with ease.

Twin-Atlas-rainwater-filtration-system-Cutout-low

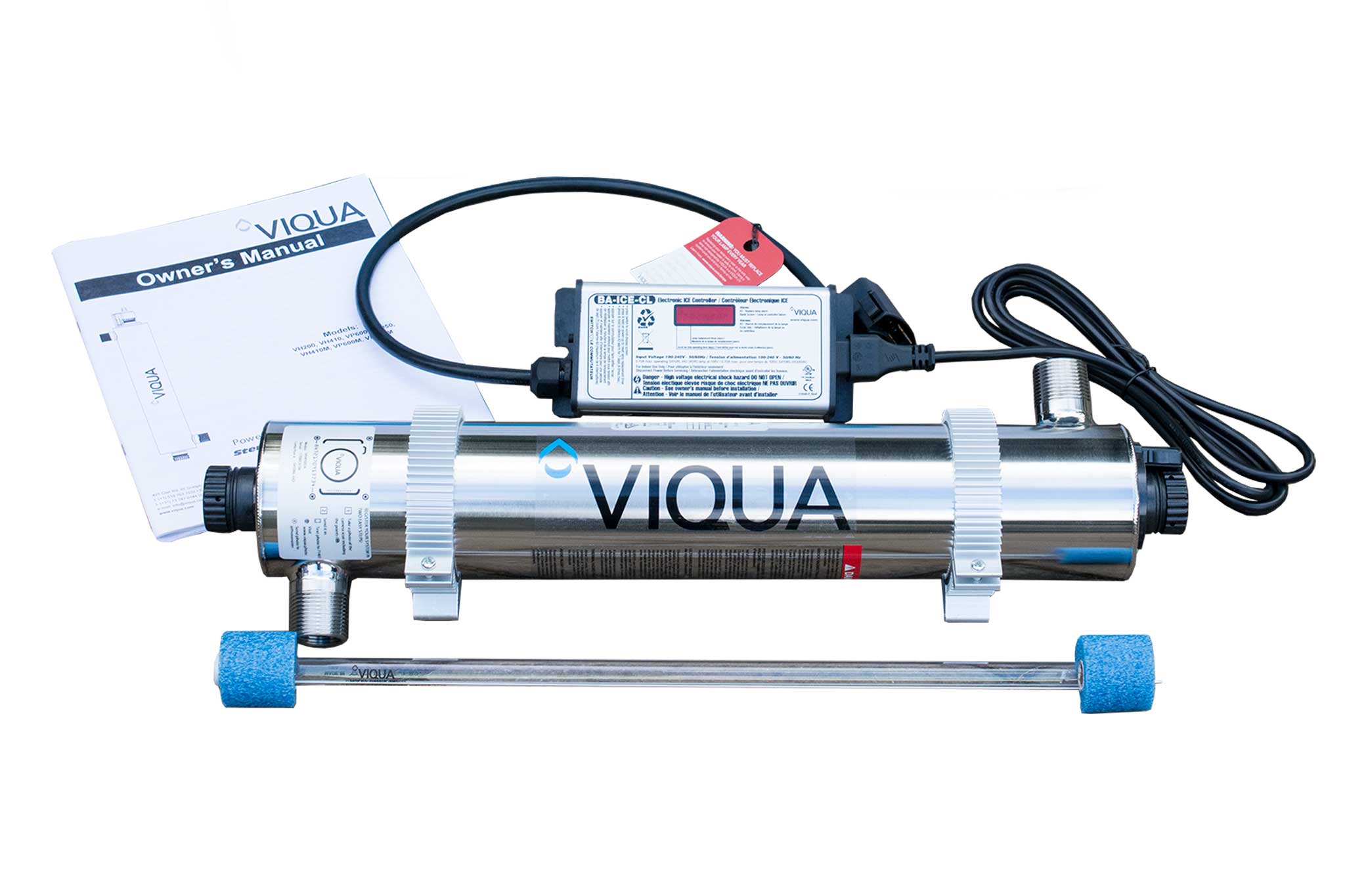

Sterilisation by Viqua + 10 year UV Warranty

Viqua is proud to be the world’s largest supplier of residential certified UV water disinfection systems. With more than 40 years of experience in the residential UV business, the expertise and care that goes into the development of Viqua products is second to none. Viqua ultraviolet technology will disinfect your drinking water, ensuring 99.9% of bacteria are destroyed, keeping you and your family safe from microbiological contaminants.

Viqua uses the most advanced UV technology on the market and is designed to provide you with years of trouble free operation with minimal maintenance required. The systems are backed by a 10-year limited warranty for the UV chamber.

Not all Rainwater Filtration Systems are the same!

High quality Filtatank systems include stainless steel water pressure gauges that indicate inlet and outlet pressure across the filtration system. This is helpful to indicate when the filtration cartridges require servicing or replacement. Usually the filter cartridges are replaced on an annual basis, depending on the volume of water usage and the quality of the water supply.

Viqua UV systems use a custom connection plug with built-in earth leakage and safety features meaning the lamp cannot be activated when out of the chamber protecting the user’s eyes from harmful UV light.

The UV lamp is replaced on an annual basis to ensure the correct wavelength of light is being delivered. The UV ballast power supply has a handy digital day count down timer and buzzer to indicate when lamp replacement is required.

Pressure-guages-whole-house-rainwater-filtration-system-2048-x-1465-72dpi-low

FT-2000UV-brick-wall-install-2048x1365-72dpi-low

THE DIFFERENCE BETWEEN TWIN & TRIPLE FILTERS

The difference between the Filtatank Twin and Triple cartridge rainwater filtration system is the addition of a 5-micron poly spun filter cartridge (in stage two of the triple system). This cartridge is designed to capture finer particles following the 10-micron pleated first stage cartridge. This will protect the silver carbon cartridge which is only designed to absorb colour, taste and odour and doesn’t prefer a lot of dirt particles.

The twin system is ideal for the standard size family home with decent quality rainwater. If the water is quite dirty and brown in colour and there is a high demand on the filter system then we recommend installing the triple cartridge filter system.

E-_Online-Store-Images-2017_low-resolution-web-pictures_Twin-20-x-4-low

Triple-20-x-4.5-filter-set-silver-carbon

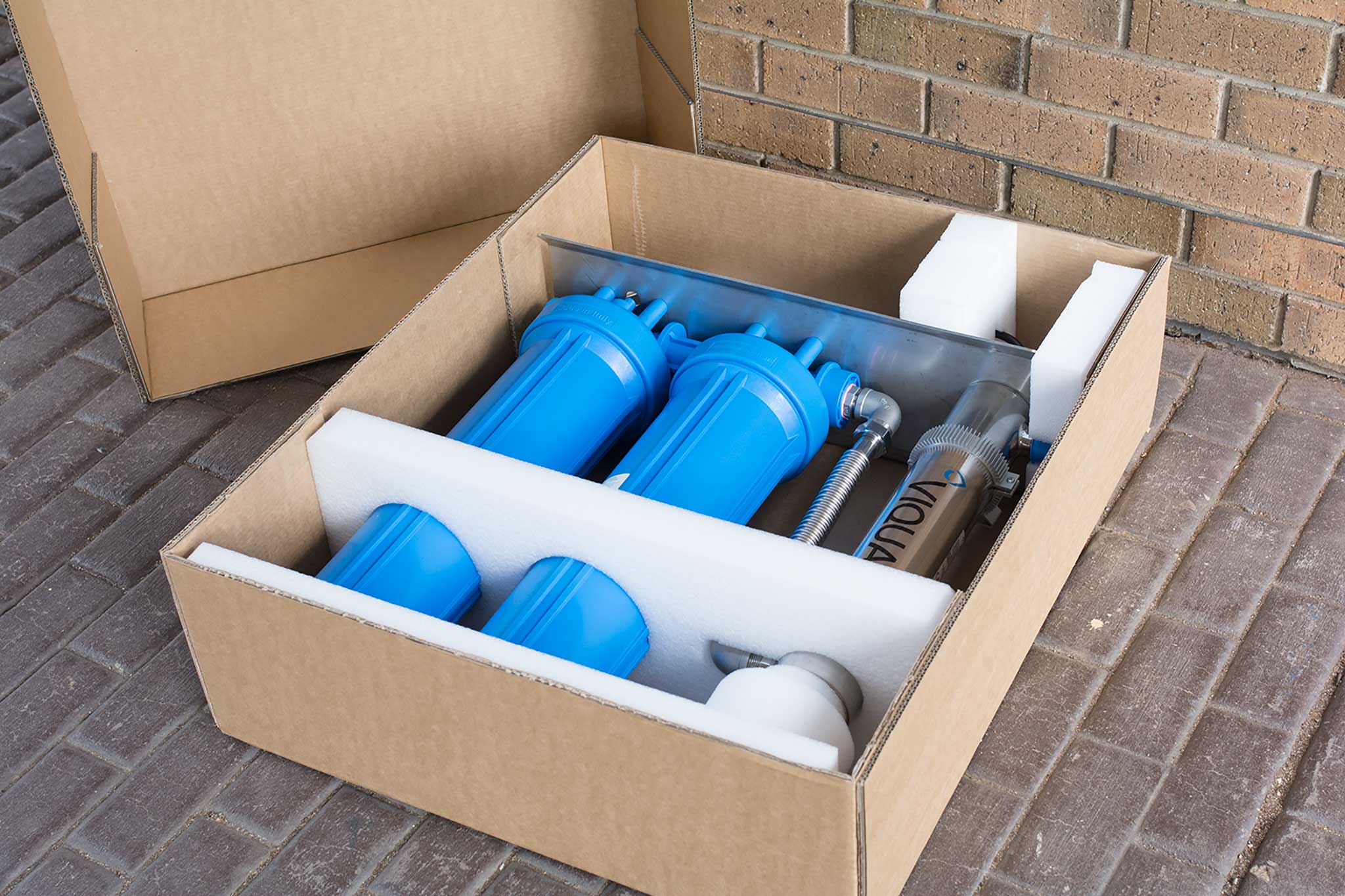

Fully Assembled System for Quick & Easy Installation

Installation for the FT-2000UV system is quick and simple thanks to the supplied mount hole template allowing the unit to be fastened to many different surfaces in just minutes. Each system is supplied fully assembled, all that is required is a plumbing connection to the 25mm inlet and outlet water ports. We recommend systems not be installed in direct rain or sunlight.

System Dimensions: 620mm W x 230mm D x 790mm H

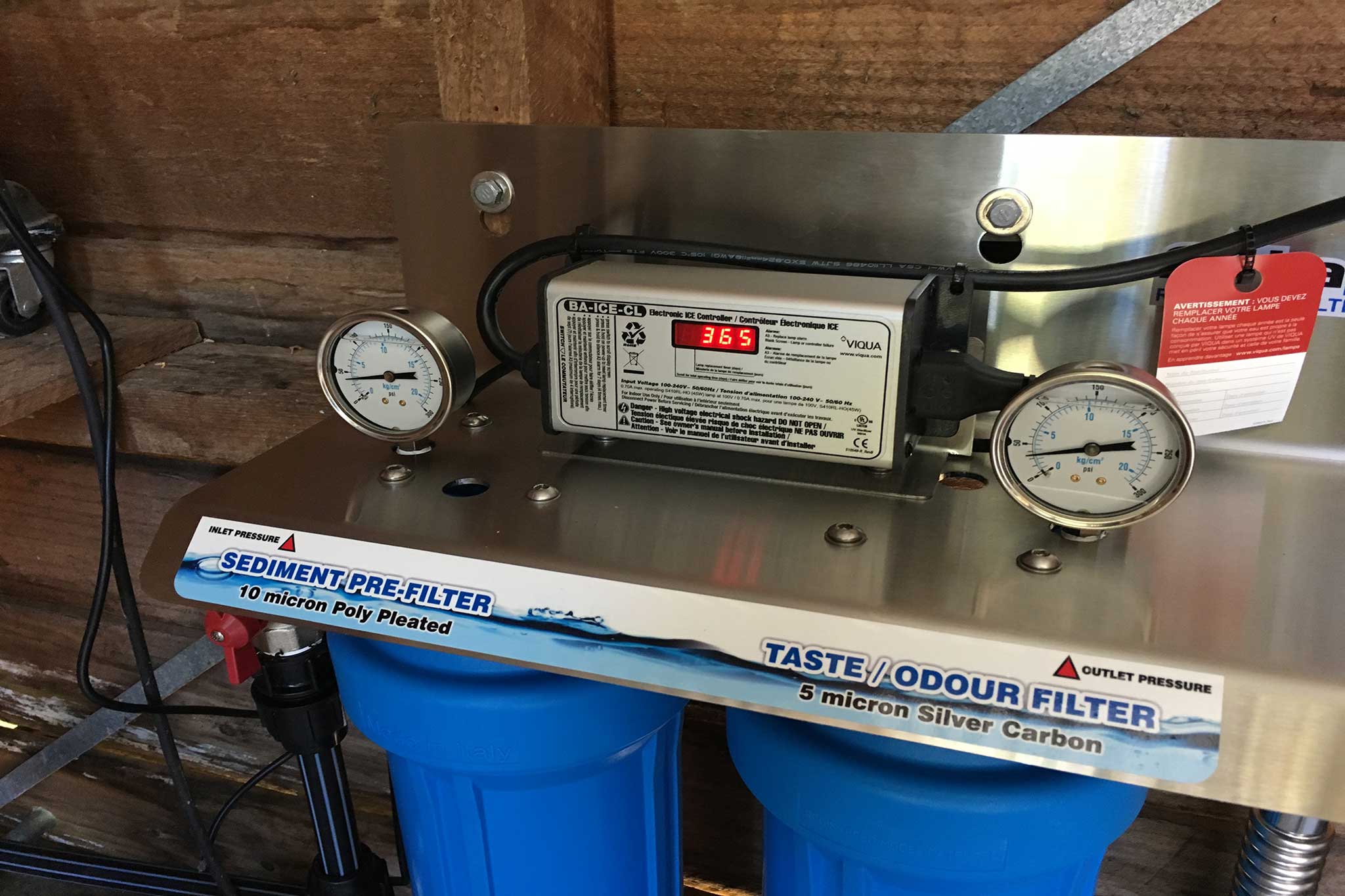

Filtatank Wall Mount Installations

FT-2000UV-wall-installation-with-pressure-pump

FT-2000UV-rainwater-filtration-shed-installation---low

FT-2000UV-rainwater-filtration-shed-installation2---low

What is the ongoing maintenance required and costs involved?

The Filter Cartridges and Ultraviolet lamp need to be replaced every 12 months to ensure protection against disease-causing microorganisms such as bacteria and viruses. Replacements are available through our online store for delivery Australia wide.

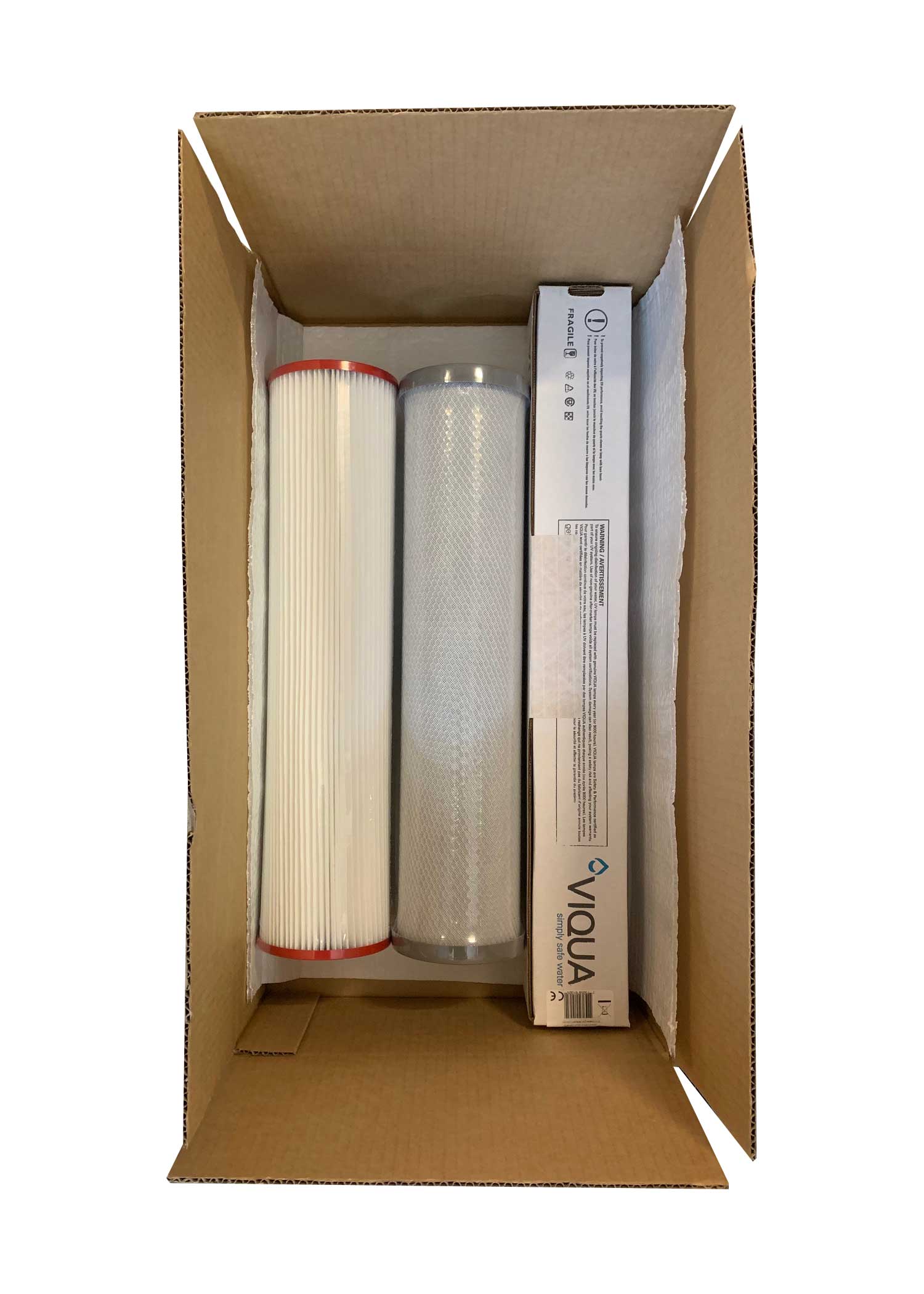

Replacement Cartridges 20″ x 4.5″ (Silver Carbon) for Whole House Twin System with Viqua UV lamp.

Replacement-filter-cartridges-twin-20-x-4.5-with-Viqua-UV-lamp-open-box

Fabrication of the filter system components by Atlas Filtri in Italy

Additional information

Specifications

System Dimensions: 620mm W x 230mm D x 790mm H
Maximum Filter Housing Flow Rate:
24GPM (90 lpm) (5.4 m³/hr)
• Stage 1: 10 Micron Polyester Pleated cartridge for dirt and sediment removal
• Stage 2: 5 Micron Silver Carbon Block for colour, taste and odour removal
• Stage 3: Water sterilisation through Viqua VH-410 U.V. system
Disinfection Flow Rates:
16mJ/cm² 34 GPM (130 lpm) (7.8m³/hr)
30mJ/cm² 18 GPM (70 lpm) (4.2m³/hr)
40mJ/cm² 14 GPM (54 lpm) (3.3m³/hr)
System specs:
BA-ICE-CL ballast controller kit 100-240V with digital LED day ‘count down’ timer display, audible and visible alarm
Power Consumption: 60W
Operating Temperature: 2-40°C (36-104°F)
Maximum Operation Pressure: 120psi (8.3bar)
Connection Size: Inlet / outlet 1″ BSP

All Systems include the following as standard:
• Filter Housing Opening Handle
• User Manual
• Filter cartridges
• Genuine 60W Viqua UV lamp

Benefits of UV Sterilisation:
• Safe and Chemical-free
• Easy to service
• Economical and energy efficient
• No effect to the taste of water
• Addresses broader range of pathogens than chlorine. Some bacteria like Cryptosporidium and Giardia can be resistant to chlorination.
Warranty:
• 3- year electrical system and filter housing warranty
• 5- year system structural warranty
• 10- year Viqua U.V. chamber warranty
