Filtatank Whole House Twin Cartridge Rainwater Filtration System with Ultraviolet Sterilisation

FT-200UV

$2,250.00

-
+

Product Info

What makes Filtatank filtration Systems the best choice?

Amazing Quality, Warranty & Performance!

Filtatank rainwater filtration systems are made from the highest quality components available on the market to provide a superior quality product that is very simple to maintain and operate.

Designed to removed sediment and harmful bacteria such as E-Coli, giardia, Salmonella, Campylobacter and cryptosporidium which can easily be transferred through animal faecal matter from birds, possums and vermin that may come into contact with the rainwater supply.

The young, the elderly, and those with compromised immune systems are among the most susceptible to infection because their intestines are less resilient to the effects of bacteria. UV offers a safe, chemical-free solution to keep these vulnerable individuals safe from harmful microorganisms that may be present in the rainwater supply.

Superior System Quality

  • System support frame designed and built in Australia from galvanised steel with painted finish.
  • Watermark approved, patented, clear Atlas filter housings.
  • Dual stainless steel pressure guages indicate accurate water inlet and outlet pressure across the filtration system.
  • Fully plumbed with high quality 316 stainless steel components.
  • Water inlet and outlet isolation taps along with a handy flush tap
  • Protected with a lockable polyethylene cover makes the unit tough and durable for the Australian climate.
  • Kills 99.9% of bacteria and viruses through exposure to UV light which eliminates their ability to reproduce.
  • Huge 10-year U.V. chamber warranty

Patented Design

Filtatank systems use the very best quality Italian made filter housings. Patented one-piece housing tops ensure leak-free connection between housings with extreme rigidity and structural strength across the whole filtration system. With a pressure rating of 120psi and 3-year warranty, the filter housings surpass all other systems with ease.

   Watermark Approved

Sterilisation by Viqua

Viqua is proud to be the world’s largest supplier of residential certified UV water disinfection systems. With more than 35 years of experience in the residential UV business, the expertise and care that goes into the development of Viqua products is second to none. Viqua ultraviolet technology will disinfect your drinking water, ensuring 99.9% of bacteria are destroyed, keeping you and your family safe from microbiological contaminants.

Viqua uses the most advanced UV technology on the market and is designed to provide you with years of trouble free operation with minimal maintenance required. The systems are backed by a Ten-year limited warranty for the UV chamber.

Compare Viqua to the competition

Many systems on the market are very poor quality made from low grade stainless steel with over polished welds which weaken the chambers structural integrity. Viqua U.V. systems are constructed using quality stainless steel with neat and accurate TIG welds which will not fail and leak. You only get what you pay for so why install a nasty U.V. system that will only need replacing in the near future!

Filtatank systems include stainless steel water pressure guages that indicate inlet and out let pressure across the filtration system. This is helpful to indicate when the filtration cartridges require servicing or replacement. Usually the filter cartridges are replaced on an annual basis, depending on the volume of water usage and the quality of the water supply.

Viqua U.V. systems use a custom connection plug with builtin earth leakage and safety features meaning the lamp cannot be activated when out of the chamber protecting the users eyes from harmful U.V. light.

The U.V. lamp is replaced on an annual basis to ensure the correct wavelength of light is being delivered. The U.V. ballast power supply has a handy digital day count down timer and buzzer to indicate when lamp replacement is required.

FT-200UV Rainwater Filtration System First Operation

Unique clear filter housings

Unique clear filter housings allow quick and easy visual inspection of the filter cartridge condition at all times. Clear housings are only possible thanks to the polyethylene protection cover which keeps the filter system out of direct sunlight.

Fabrication of the filter system components by Atlas Filtri made in Italy

Fully Assembled System For Quick & Easy Installation

Quick and easy installation of Filtatank systems is thanks to the unique ‘Free-Standing’ filter frame designed and made in Australia. Each system is ‘Plug and Play’, fully plumbed and ready to go. Systems can be installed next to rainwater tanks, out in a paddock or next to the house making Filtatank systems a brilliant option for all different applications. They can even be quickly transported to different locations such as building or mining sites where on-site water filtration is required.



All that is required is a flat base prepared and plumbing connection to the 25mm inlet and outlet water ports. Usually the power supply to the pressure pump can be shared to connect the U.V. system and the system is fully operational!

Each system includes a lockable polyethylene weather protection cover which is tough and durable to protect the system from the harsh Australian climate.

System dimensions: 1000mm W x 550mm D x 920mm H

The difference between Twin & Triple filters

The difference between the Filtatank twin and triple cartridge filtration system is the addition of a 5-micron poly- spun filter cartridge in stage two of the triple system. This cartridge is designed to capture finer particles following the 10-micron pleated first stage cartridge. This will protect the silver carbon cartridge which is only designed to absorb colour, taste and odour and doesn’t do well if receiving a lot of dirt particles.

The twin system is ideal for the standard size family home with decent quality rainwater. If the water is quite dirty and brown in colour and the is a high demand on the filter system then we recommend installing the triple cartridge filter system.

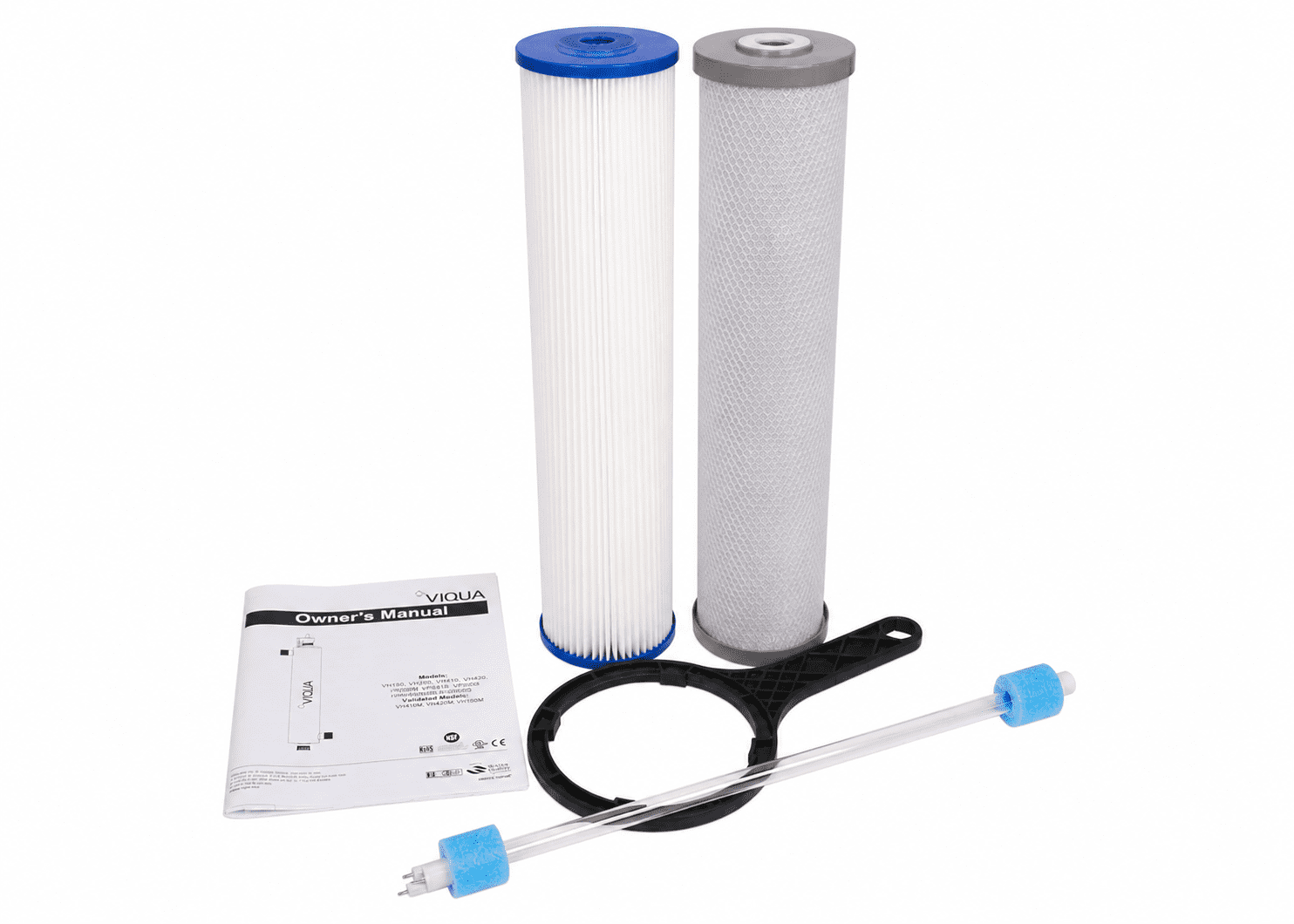

What's Included

1 x 10 Micron Polyester Pleated cartridge for dirt and sediment removal

1 x 5 Micron Silver Carbon Block for colour, taste and odour removal

1 x Filter housing opening handle

1 x 60w genuine Viqua U.V. lamp

2 x User manual

Installation Examples

Additional information

Specifications

System dimensions: 1000mm W x 550mm D x 920mm H
Maximum Filter Housing Flow Rate: 24 GPM (90 lpm) (5.4 m³/hr)
• Stage 1: 10 Micron Polyester Pleated cartridge for dirt and sediment removal
• Stage 2: 5 Micron Polyester Spun cartridge for finer sediment removal
• Stage 3: 5 Micron Silver Carbon Block for colour, taste and odour removal
• Stage 4: Water sterilisation through Viqua VH-410 U.V. system
Disinfection Flow Rates:
16mJ/cm² 34 GPM (130 lpm) (7.8m³/hr)
30mJ/cm² 18 GPM (70 lpm) (4.2m³/hr)
40mJ/cm² 14 GPM (54 lpm) (3.3m³/hr)
BA-ICE-CL ballast controller kit 100-240V with digital LED day ‘count down’ timer display, audible and visible alarm
Power Consumption: 60W
Operating Temperature: 2-40°C (36-104°F)
Maximum Operation Pressure: 120psi (8.3bar)
Connection Size: Inlet / outlet 1″ BSP

All Systems include the following as standard:
• Filter Housing Opening Handle
• User Manual
• Filter cartridges
• Genuine 60W Viqua UV lamp

Benefits of UV Sterilisation
• Safe and Chemical-free
• Easy to service
• Economical and energy efficient
• No effect to the taste of water
• Addresses broader range of pathogens than chlorine. Some bacteria like Cryptosporidium and Giardia can be resistant to chlorination.
Warranty:
• 3- year electrical system and filter housing warranty
• 5- year system structural warranty
• 10- year Viqua U.V. chamber warranty
