Name: Triple Cartridge 20" x 4.5" Whole House Rainwater Filtration System
SKU: 3779
Price: 795.00 AUD
Availability: InStock

Product Description

TRIPLE CARTRIDGE 20`` x 4.5`` WHOLE HOUSE RAINWATER FILTRATION SYSTEM

Triple 20″ x 4.5″ Whole House Rainwater Filter Systems remove unwanted sediment through a 10-micron polyester pleated cartridge, followed by a 5-micron poly spun cartridge to remove finer silt particles before filtering through a 5-micron silver impregnated carbon cartridge to remove colour, taste and odour. Silver is used to inhibit the growth of bacteria on the cartridge. The spun cartridge helps extend the workable life of the carbon cartridge. Pressure gauges indicate water inlet and outlet pressure.

WHAT'S INCLUDED

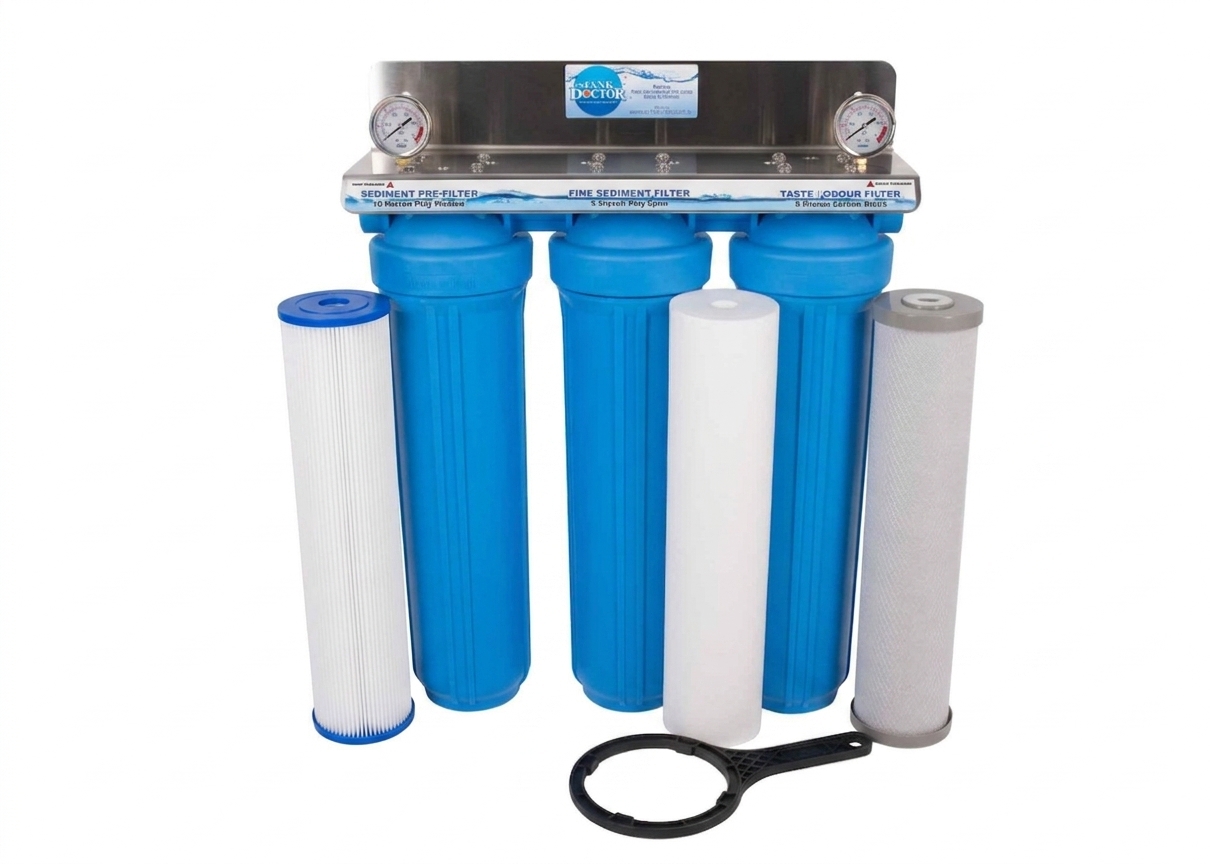

1 x Triple cartridge poly filtration system housings and top cap

1 x Metal mounting bracket with stainless steel screws

2 x Stainless steel water pressure guages

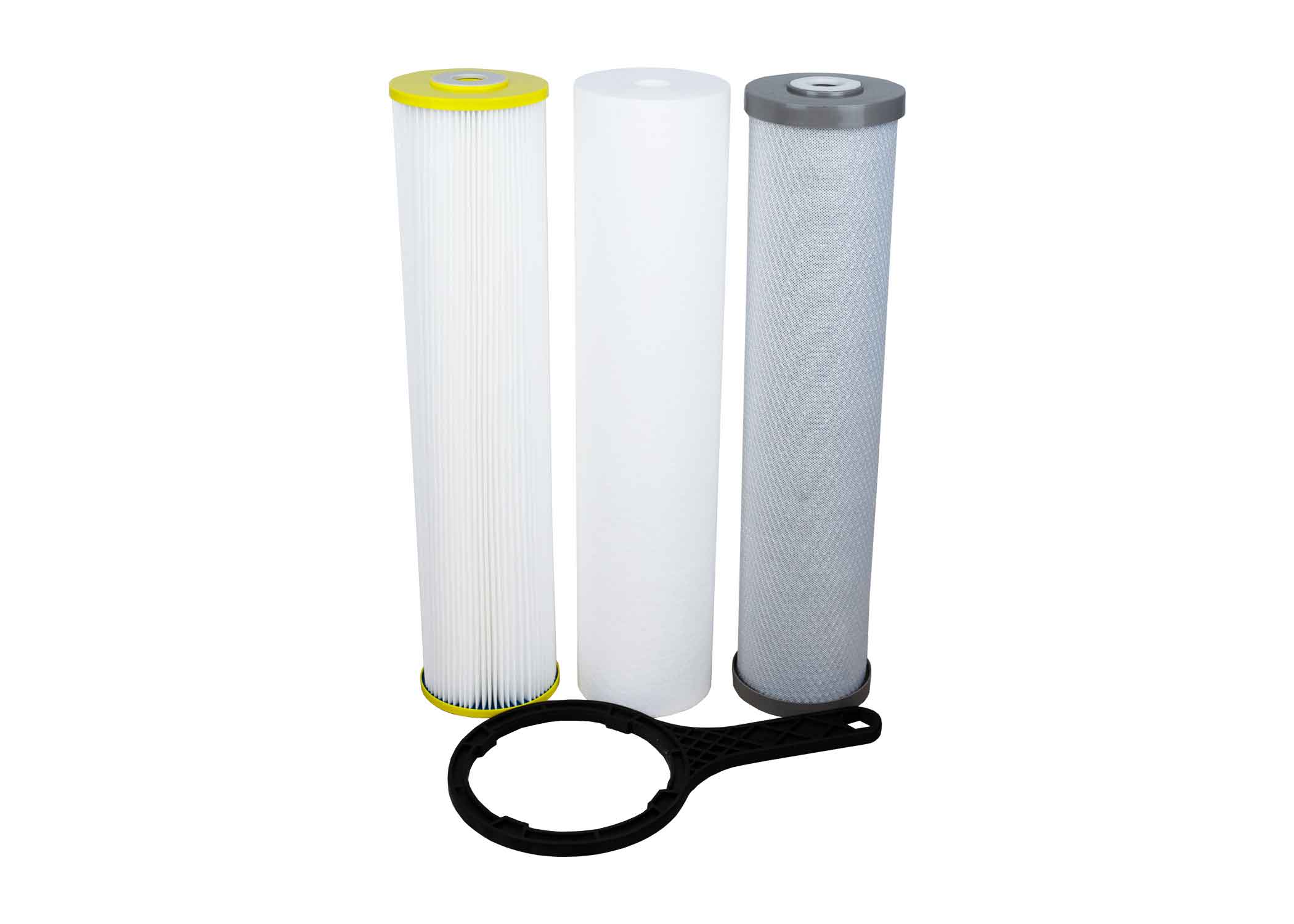

1 x 10 Micron Polyester Pleated cartridge for dirt and sediment removal

1 x 5 Micron Polyester Spun cartridge for finer sediment particle removal

1 x 5 Micron Silver Carbon Block for colour, taste and odour removal

1 x Filter housing opening handle

*Some assembly is required

FREE SYSTEM SHIPPING AUSTRALIA WIDE

WHAT MAKES FILTATANK FILTRATION SYSTEMS THE BEST CHOICE?

Superior System Quality, Warranty & Performance

Filtatank rainwater filtration systems are made from the highest quality components available on the market to provide a superior quality product that is very simple to maintain and operate. Designed to remove sediment, colour, taste and odour from the rainwater supply.

System Dimensions: 590mm W x 200mm D x 740mm H

Italian made, patented Atlas filter housings rated to 120psi. Watermark approved
Dual stainless steel pressure gauges indicate accurate water inlet and outlet pressure across the filtration system.
3-year warranty

Triple-Atlas-rainwater-filter-system-cut-out-2048x1365-72dpi-low

Patented Design

Filtatank systems use the very best quality Italian made filter housings. Patented one-piece housing tops ensure leak-free connection between housings with extreme rigidity and structural strength across the whole filtration system.

With a pressure rating of 120psi and 3-year warranty, the filter housings surpass all other systems with ease.

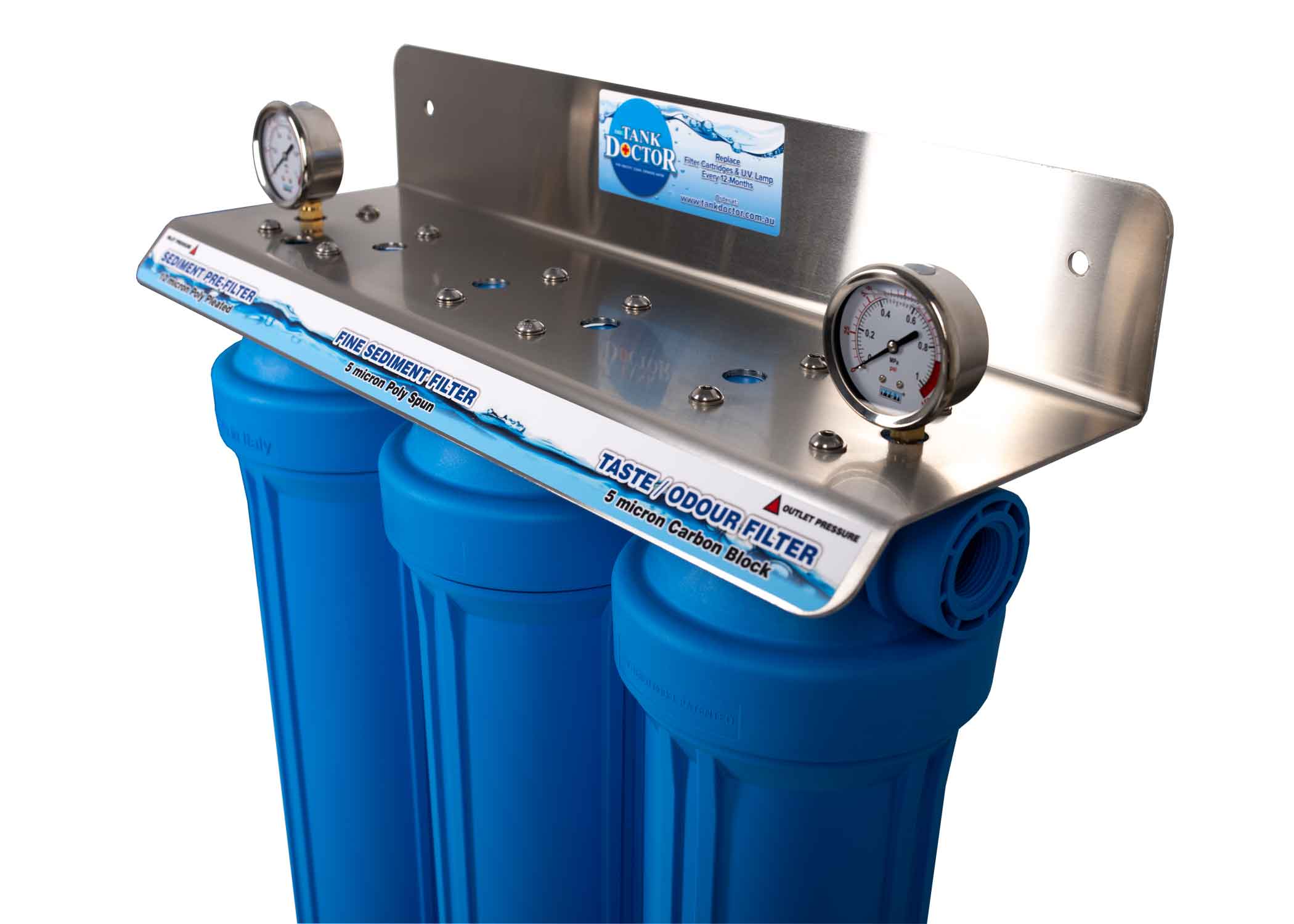

Triple-cartridge-Atlas-rainwater-filtration-system-angle-shot-low

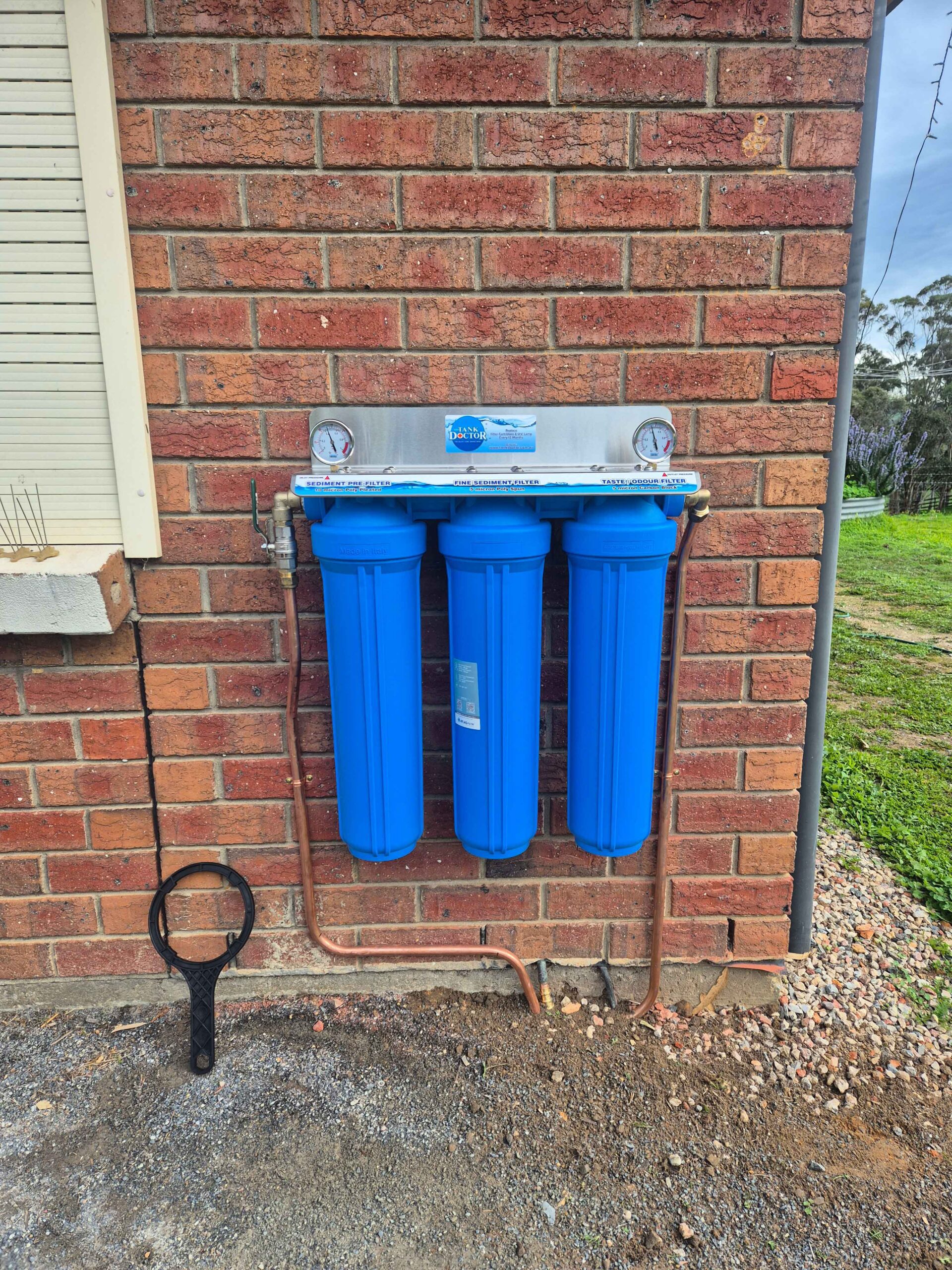

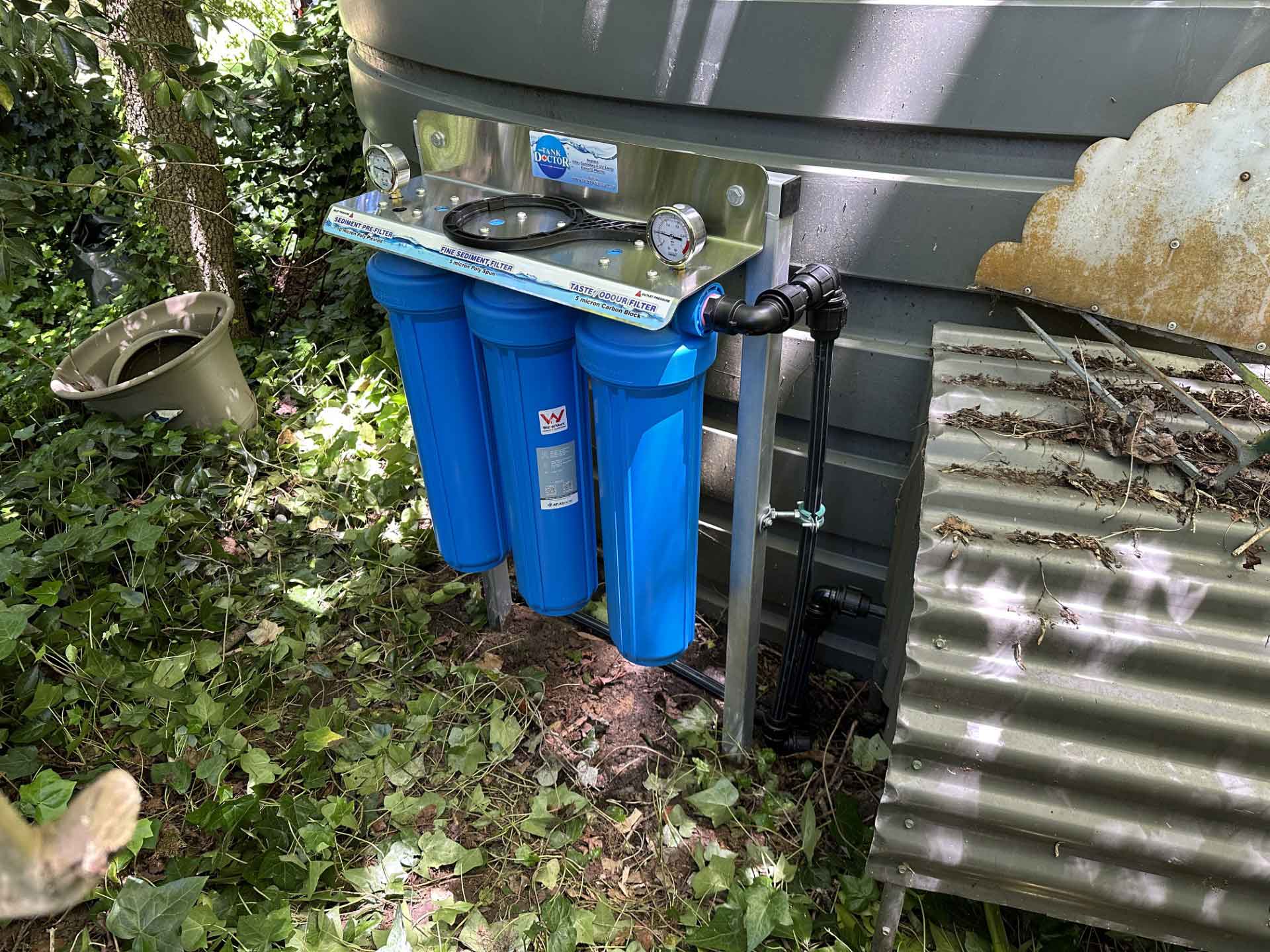

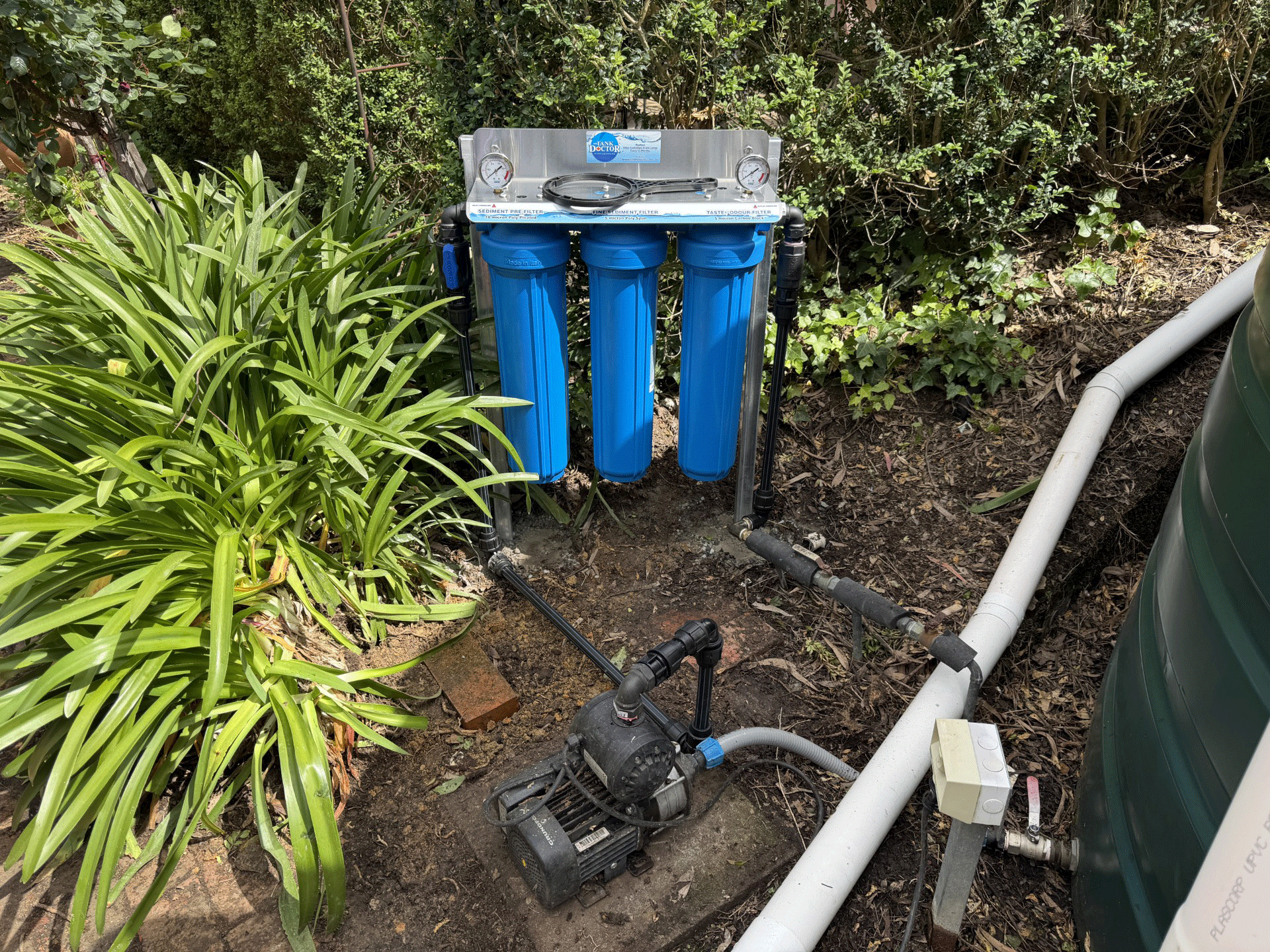

Triple-Atlas-whole-house-rainwater-filter-system-installation

Fabrication of the filter system components by Atlas Filtri in Italy

Additional information

Specifications

System Dimensions: 590mm W x 200mm D x 740mm H
Maximum Filter Housing Flow Rate: 24GPM (90 lpm) (5.4 m³/hr)
• Stage 1: 10 Micron Polyester Pleated cartridge for dirt and sediment removal
• Stage 2: 5 Micron Polyester Spun cartridge for finer sediment removal
• Stage 3: 5 Micron Silver Carbon Block for colour, taste and odour removal

Maximum Operation Pressure: 120psi (8.3bar)
Operating Temperature: 2-40°C (36-104°F)
Connection Size: Inlet / outlet 1″ BSP

All Systems include the following as standard:
• Filter Housing Opening Handle
• Filter cartridges
• Easy to service
