Twin Cartridge ‘Free-Standing’ Rainwater Filtration System

Filtatank FT-200



Product Info

Product Description

What makes Filtatank filtration Systems the best choice?

Amazing Quality, Warranty & Performance!

Filtatank rainwater filtration systems are made from the highest quality components available on the market to provide a superior quality product that is very simple to maintain and operate. Designed to removed sediment, colour, taste and odour from the rainwater supply.

Superior System Quality

  • System support frame designed and built in Australia from galvanised steel with painted finish.
  • Watermark approved, patented, clear Atlas filter housings.
  • Dual stainless steel pressure guages indicate accurate water inlet and outlet pressure across the filtration system.
  • Fully plumbed with high quality 316 stainless steel components.
  • Water inlet and outlet isolation taps along with a handy flush tap
  • Protected with a lockable polyethylene cover makes the unit tough and durable for the Australian climate.
  • 5-year structural warranty

Patented Design

Filtatank systems use the very best quality Italian made filter housings. Patented one-piece housing tops ensure leak-free connection between housings with extreme rigidity and structural strength across the whole filtration system. With a pressure rating of 120psi and 3-year warranty, the filter housings surpass all other systems with ease.


Watermark Approved

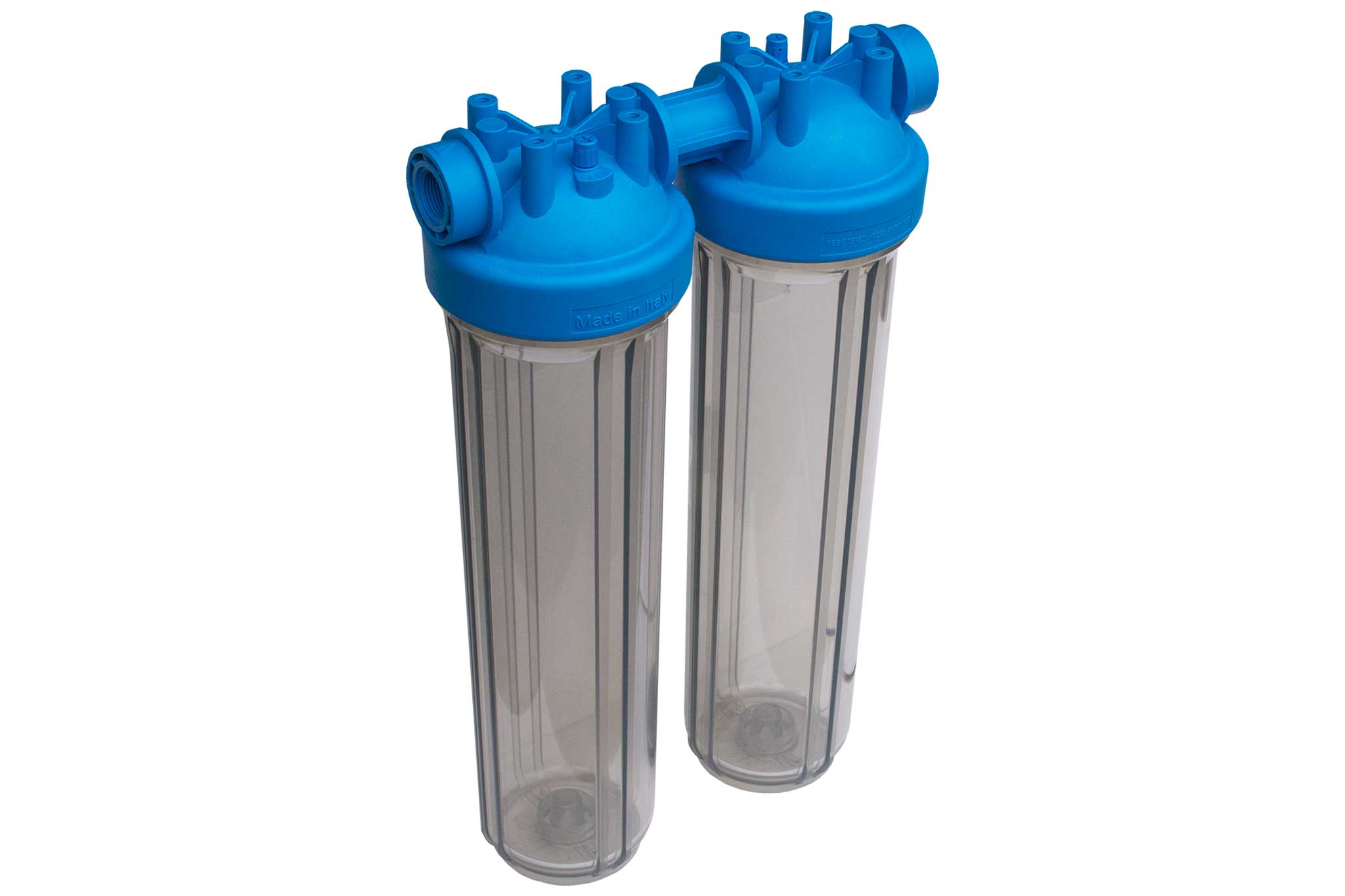

Unique clear filter housings

Unique clear filter housings allow quick and easy visual inspection of the filter cartridge condition at all times. Clear housings are only possible thanks to the polyethylene protection cover which keeps the filter system out of direct sunlight.

Fabrication of the filter system components by Atlas Filtri made in Italy

Fully Assembled System For Quick & Easy Installation

Quick and easy installation of Filtatank systems is thanks to the unique ‘Free-Standing’ filter frame designed and made in Australia. Each system is ‘Plug and Play’, fully plumbed and ready to go. Systems can be installed next to rainwater tanks, out in a paddock or next to the house making Filtatank systems a brilliant option for all different applications. They can even be quickly transported to different locations such as building or mining sites where on-site water filtration is required.

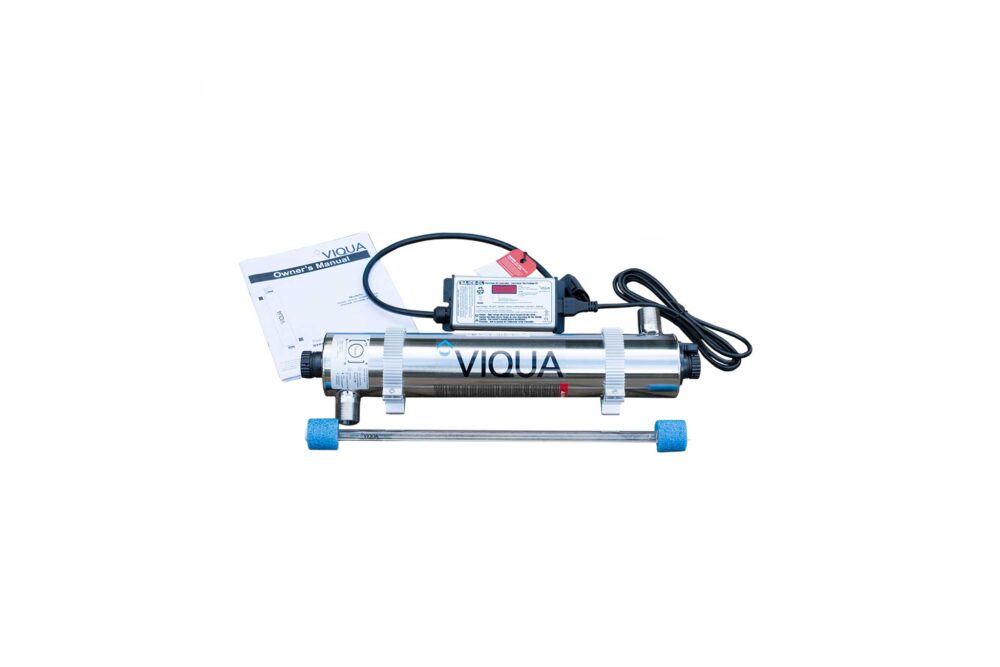

All that is required is a flat base prepared and plumbing connection to the 25mm inlet and outlet water ports. Usually the power supply to the pressure pump can be shared to connect the U.V. system and the system is fully operational!

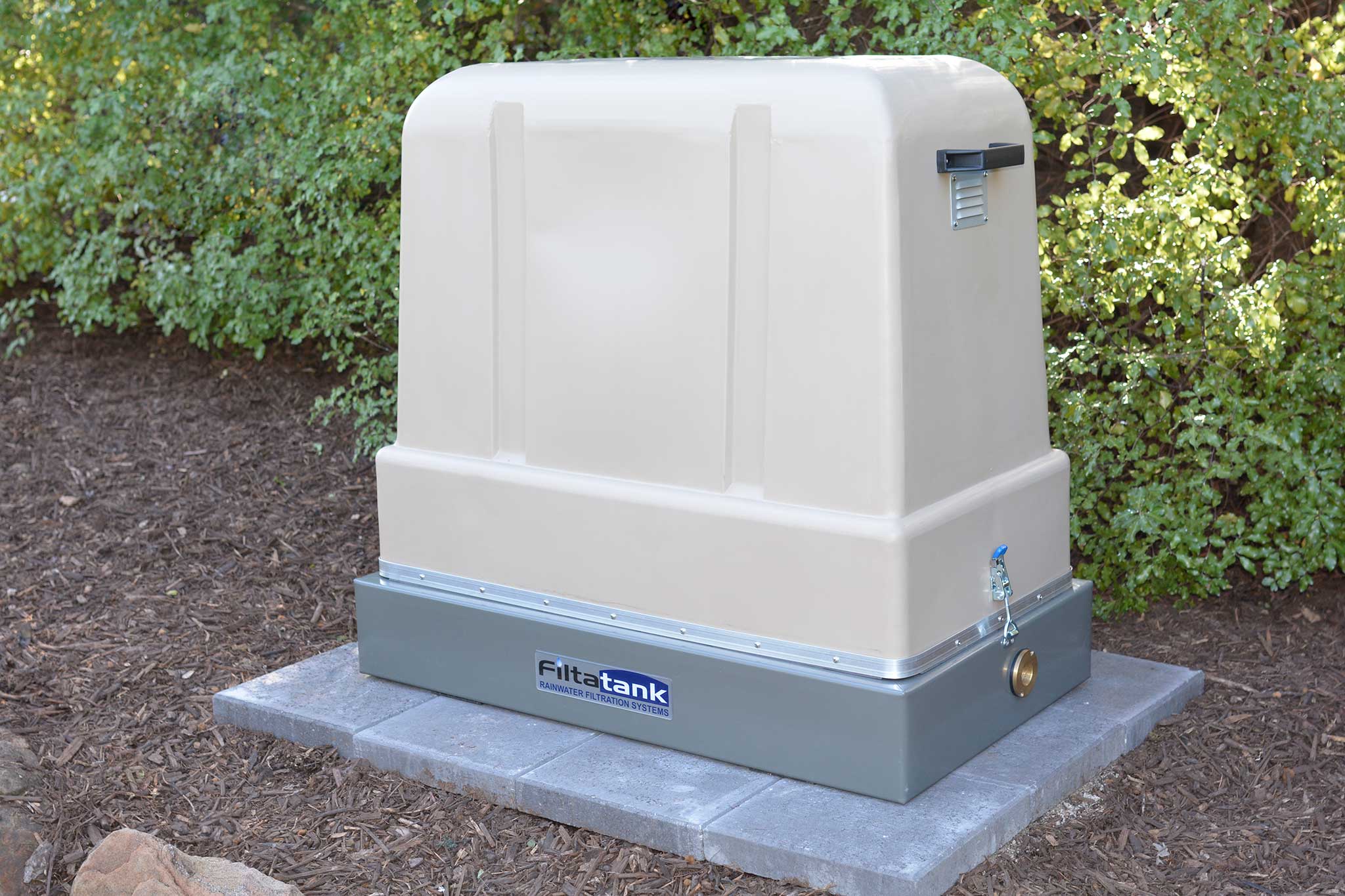

Each system includes a lockable polyethylene weather protection cover which is tough and durable to protect the system from the harsh Australian climate.

System dimensions: 1000mm W x 550mm D x 920mm H

What's Included

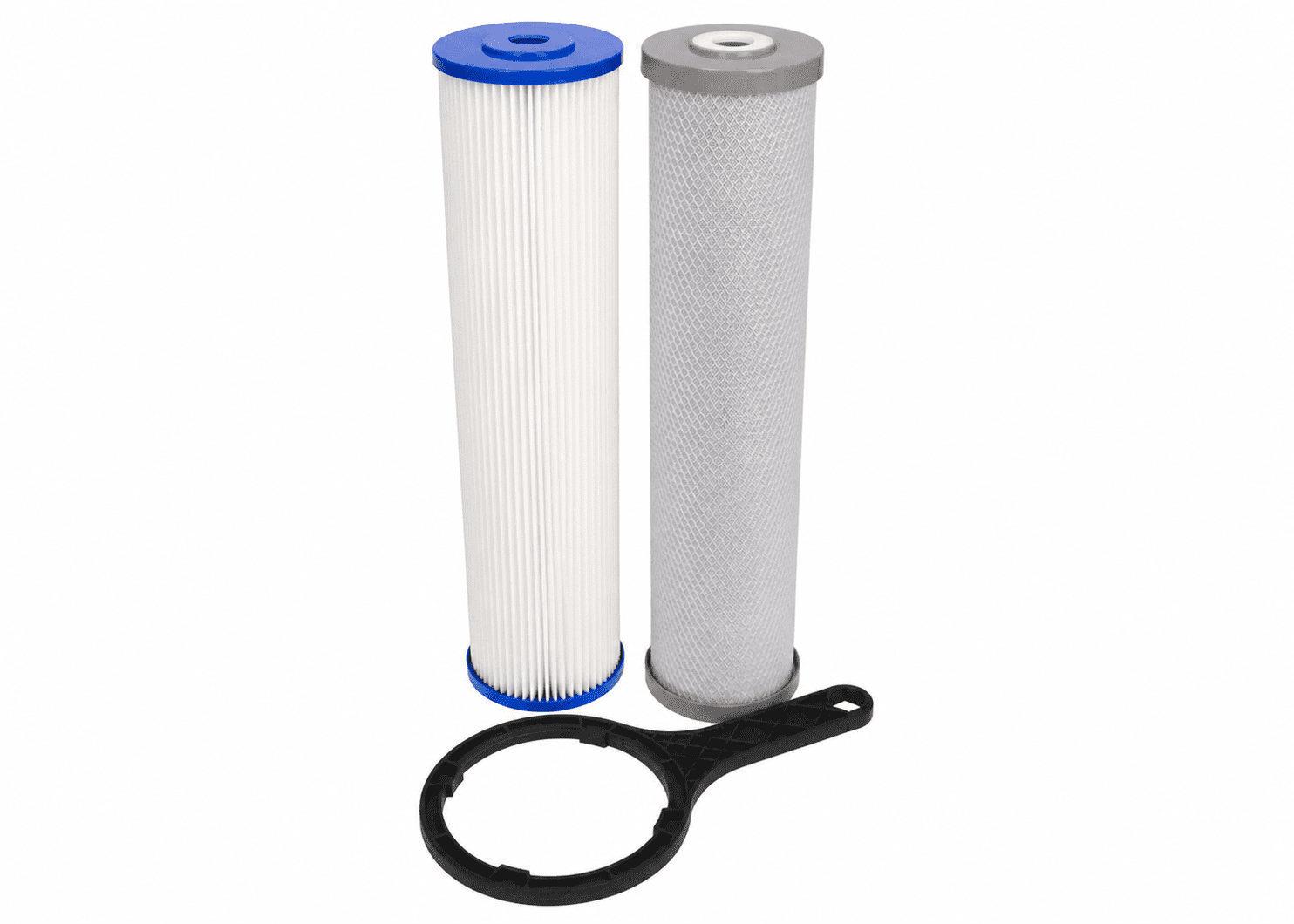

1 x 10 Micron Polyester Pleated cartridge for dirt and sediment removal

1 x 5 Micron Silver Carbon Block for colour, taste and odour removal

1 x Filter housing opening handle

1 x User manual

Free Postage Australia Wide!

(Limited to most metropolitan districts at our discretion)

Copy of quality guarantee badge

Additional information


System dimensions: 1000mm W x 550mm D x 920mm H
Maximum Filter Housing Flow Rate: 24 GPM (90 lpm) (5.4 m³/hr)
• Stage 1: 10 Micron Polyester Pleated cartridge for dirt and sediment removal
• Stage 2: 5 Micron Silver Carbon Block for colour, taste and odour removal

Maximum Operation Pressure: 120psi (8.3bar)
Connection Size: Inlet / outlet 1″ BSP

All Systems include the following as standard:
• Filter Housing Opening Handle
• User Manual
• Filter cartridges

• 5- year system structural warranty
